Product family · Mounting
Fence mounting systems
Every TPS fence mounts on the same structure: one stock of fittings, one way of working. The fittings come in RAL 7016 anthracite and RAL 8017 brown.
- 4
- parts: tube, post, bracket, screws
- 30×20 mm
- 2 m rectangular tube, with an extension piece
- 2 colours
- RAL 7016 anthracite and RAL 8017 brown

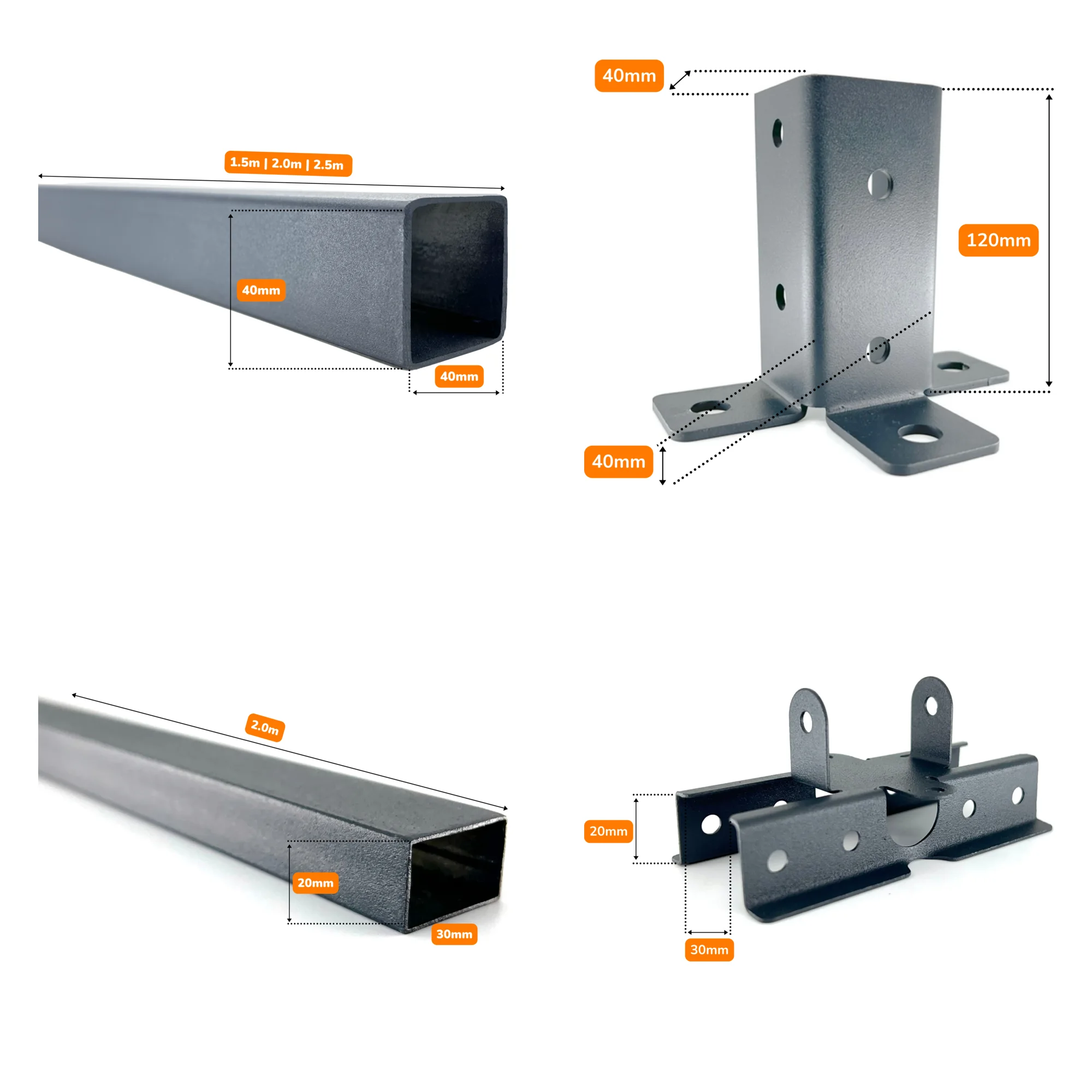

01 Parts
The parts of the system.
The same parts for pickets, louvres and panels: one stock of fittings for every TPS fence.

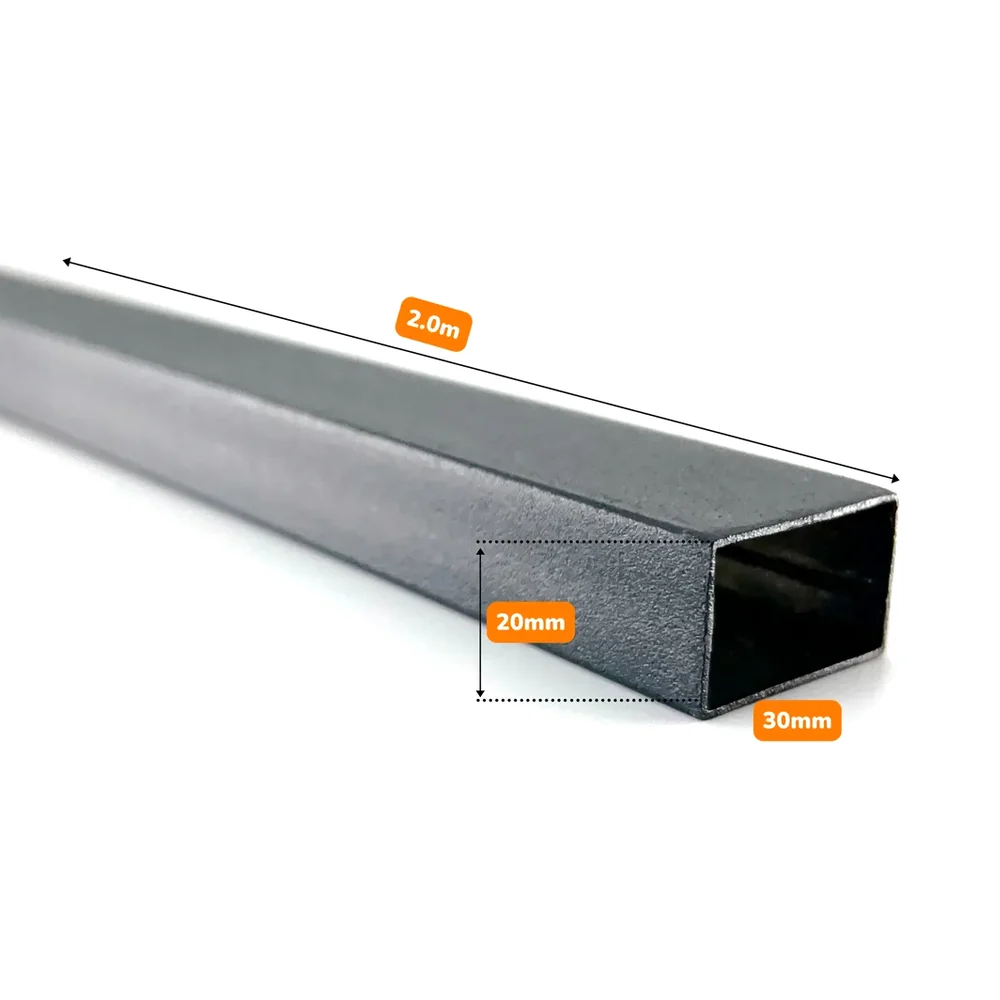

Rectangular tube
The rail the pickets fix to. 2,000 mm long, with an extension piece.
Size30×20 mm

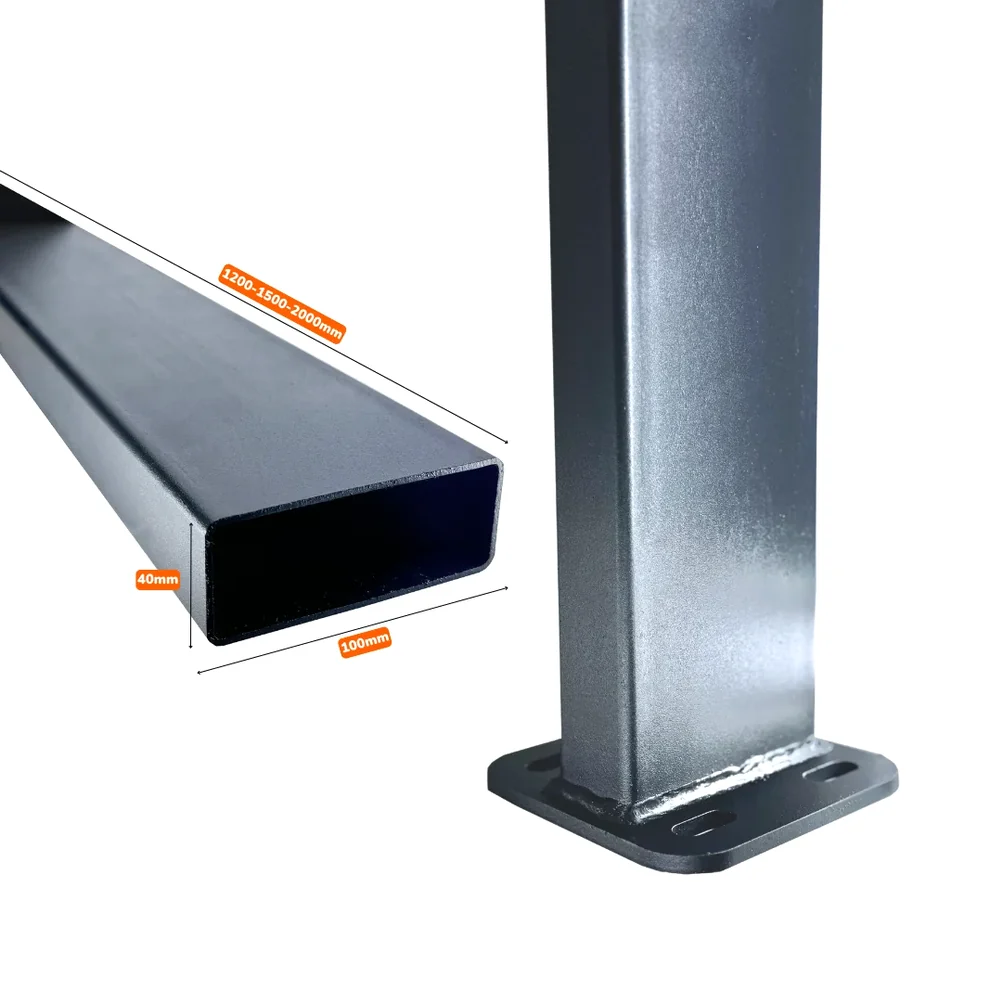

Post with welded base plate
The fence post. 1.20, 1.50 or 2.00 m high.
Size60×40 / 100×40 mm

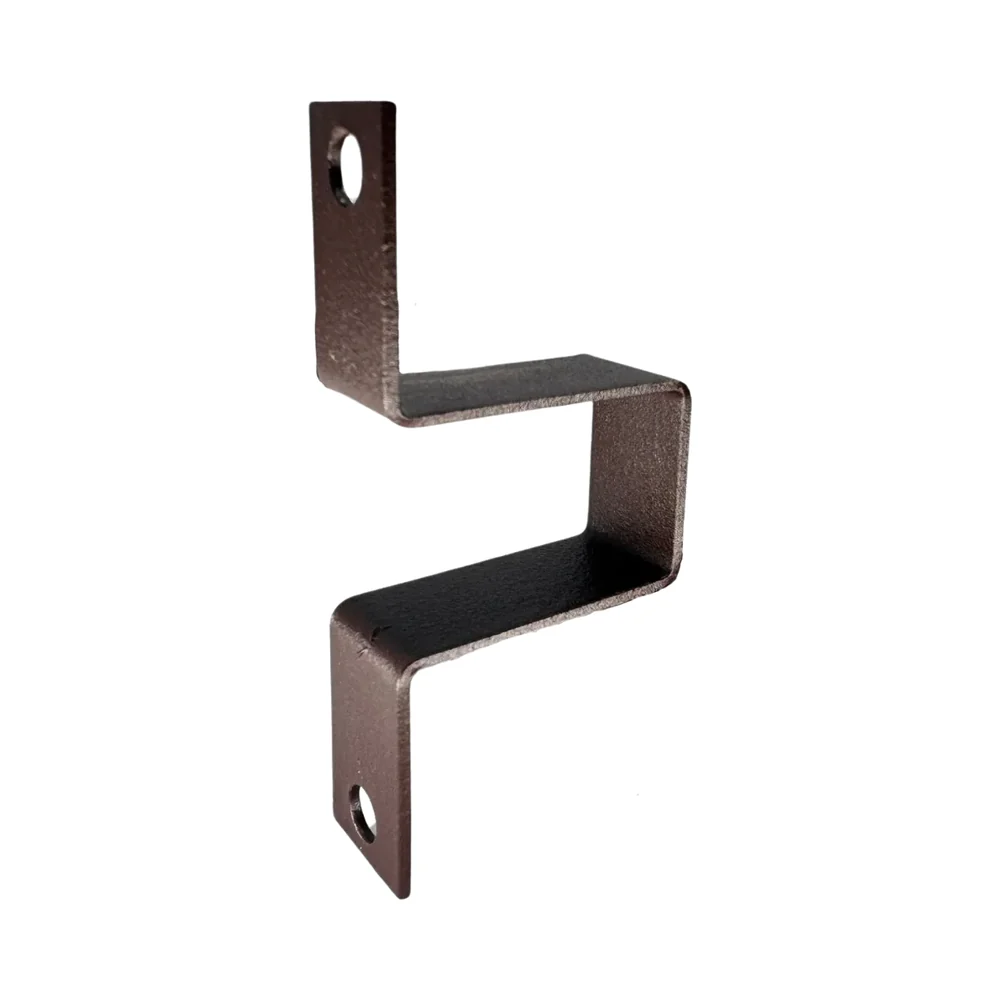

Tube bracket
Holds the tube on concrete, brick or metal posts.
VersionsClassic, Smart

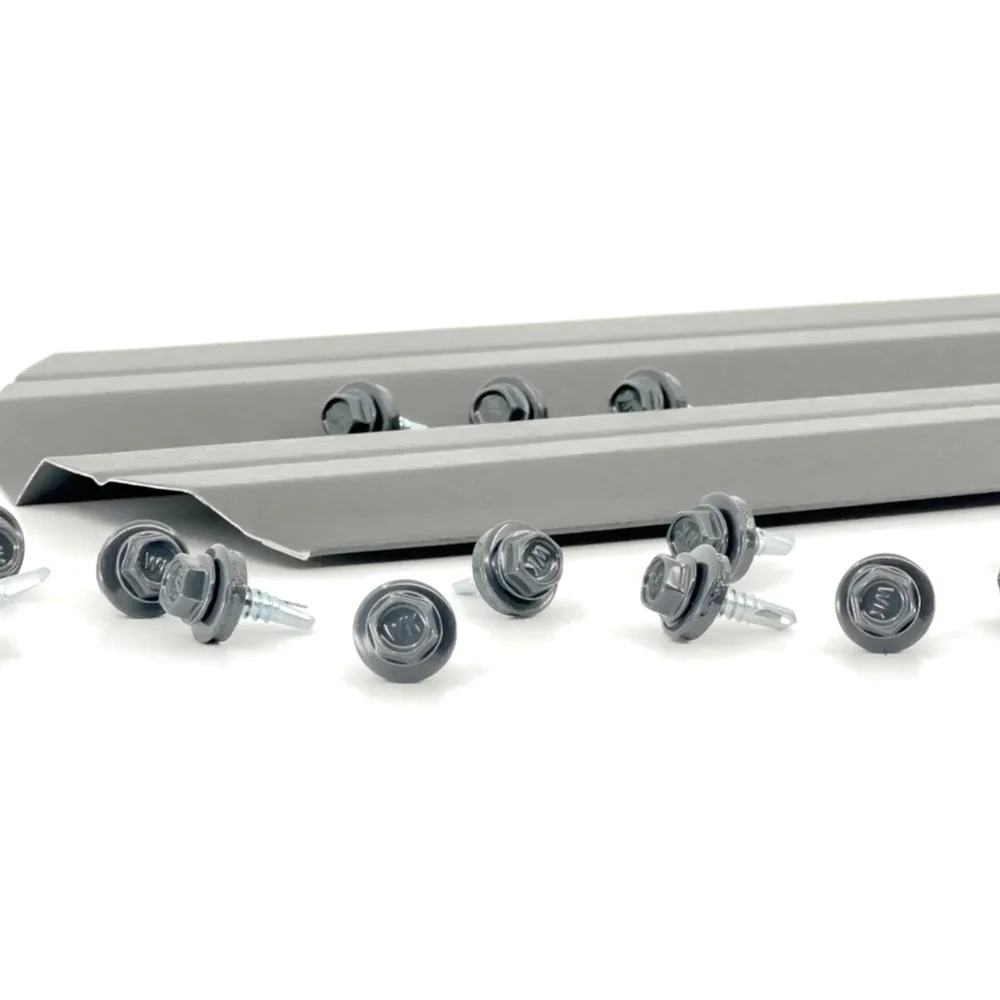

Self-drilling screws
Fix the pickets to the tube, in the fence colour.
Size4,8×19 mm
02 Quick comparison
| Part | Size | Versions | Role |
|---|---|---|---|
| Rectangular tube | 30×20 mm, 2,000 mm | with extension piece | the fence rail |
| Posts | 40×40, 60×40, 100×40 mm | 1.20 / 1.50 / 2.00 m, matt or gloss | the fence post |
| Tube bracket | — | Classic, Smart | holds the tube on concrete, brick or metal |
| Self-drilling screws | 4.8×19 mm | coloured | fix the pickets |
| Caps | — | cup, plug | close the tubes and posts |
The fittings come in RAL 7016 anthracite and RAL 8017 brown.
03 Why one system
The same fitting for every fence.
- 01One stock of fittings
The same tubes, posts and brackets for every TPS fence model.
- 02On any kind of post
Classic and Smart brackets fix the fence to concrete, brick or metal posts.
- 03In the fence colour
Fittings in RAL 7016 and RAL 8017; the screws come in the fence colour.
For your home
Fitting the fence at your home?
Tell us which fence you are fitting and we send you the posts, tubes and brackets it needs.
Ask for a parts listFor businesses
Do you sell or install fences?
Terms for distributors, installers and residential projects.
Request a B2B quote04 Questions
About the mounting system
Which posts are there?
40×40 mm posts, and posts with welded base plates of 60×40 and 100×40 mm, 1.20, 1.50 or 2.00 m tall.
Can the fence be fitted to concrete or brick pillars?
Yes. The Classic and Smart tube brackets fix the fence to concrete, brick or metal posts.
Which colours are the accessories?
RAL 7016 anthracite and RAL 8017 brown; the self-drilling screws come in the fence colour.
How long does production take?
We produce and hand over for shipping within 5–10 working days. Delivery is arranged as part of each partnership.
How do I get partner prices?
Send an enquiry with the product, your area and estimated volumes. We reply within 1–2 working days with the offer for your type of partnership. There is no minimum order.
