Metal cladding · Straight profile
Jupiter
Straight-profile cladding for ventilated façades and soffits.
- Panel length
- 2.50 m; 24 cm cover width
- Warranty
- Up to 30 years, depending on the finish
- Steel thickness
- 0.40–0.50 mm*
- Zinc coating
- 225–275 g/m²
16 colour options · 5 finishes
Prices, configurator and delivery on sipca.ro — the Top Profil Sistem online shop (in Romanian)
* Thickness depends on the finish: 0.40 mm woodgrain; 0.45 mm matt, gloss; 0.50 mm Hi‑Mat, Galvanum.
01 About the model
Jupiter cladding
Jupiter is the straight-profile metal cladding: 2.50 m panels with a 24 cm cover width, for ventilated façades and soffits.
It does not warp in the heat and is used from −50 °C to +120 °C. On a soffit, fit 3 Jupiter panels to 1 perforated Saturn panel for ventilation.
Ventilated façades
Panels for ventilated façades and decorative cladding.
Soffits

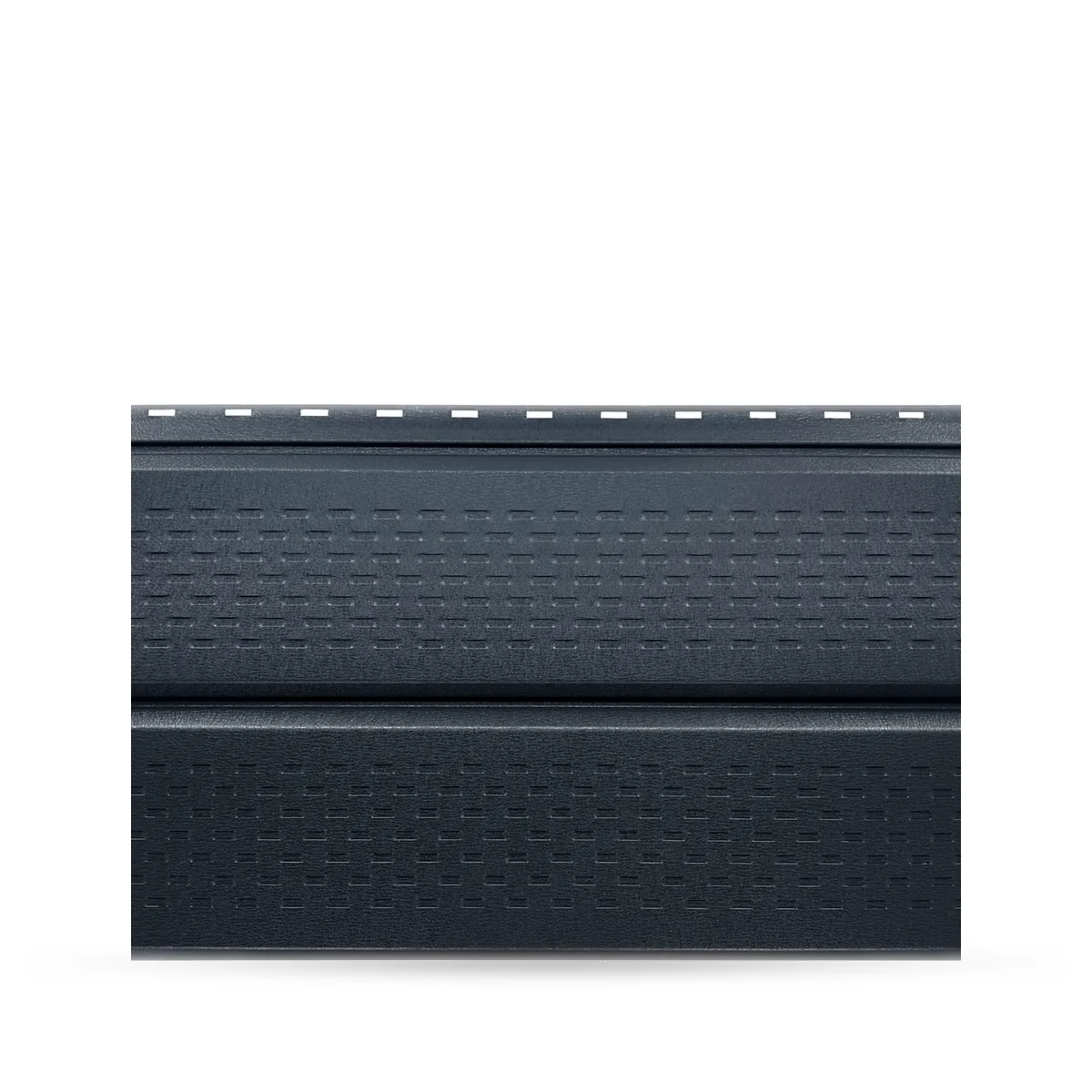

3 solid panels to 1 perforated Saturn panel.
No warping in the heat
For use from −50 °C to +120 °C.
Trims
Starter profile and side trim.
02 Profile and sizes
Documents
- Jupiter data sheetOn request, by email · we reply within 1–2 working days
- Warranty certificateSupplied with the product · up to 30 years, depending on the finish
| Type | Metal cladding for ventilated façades and soffits |
|---|---|
| Material | Pre-painted, double-galvanised steel sheet — KG Dongbu Steel, South Korea |
| Thickness | 0.40–0.50 mm, depending on the finish |
| Zinc coating | 225–275 g/m² |
| Panel length | 2.50 m |
| Overall / cover width | 26 cm / 24 cm |
| Soffit ventilation | 3 solid panels to 1 Saturn panel |
| Accessories | Starter profile, side trim |
| Service temperatures | −50 °C … +120 °C |
| Technical warranty | Up to 30 years, depending on the finish |
|---|---|
| Aesthetic warranty | Up to 30 years, depending on the finish |
| Expected service life | Over 50 years |
| Delivery | 2.50 m panels; trims ordered separately |
| Production | 5–10 working days |
03 Colours and finishes
Colours and finishes.
16 colour options. Colours on screen are approximate: ask for free samples and see the real finish before you order.
Matt
0.45 mm · one side
Atlantic grey
RAL 7016

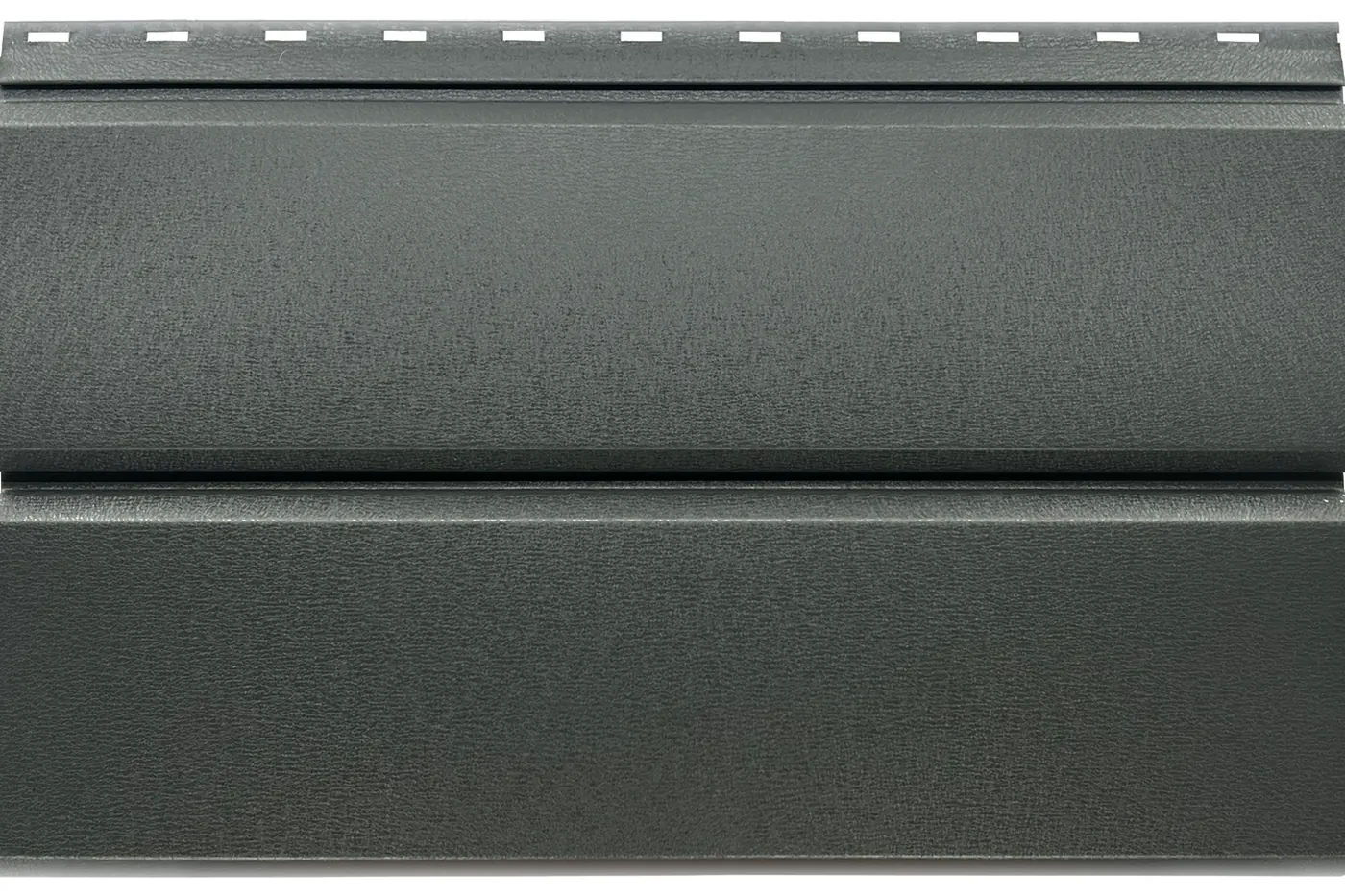

Graphite grey
RAL 7024
Chocolate brown
RAL 8017
Espresso brown
RAL 8019
Hi‑Mat
0.50 mm · textured
Brick red
Pearl graphite
Cedar brown
Night black
Pine green
Cherry red
Woodgrain
0.40 mm · one side
Mahogany
Walnut

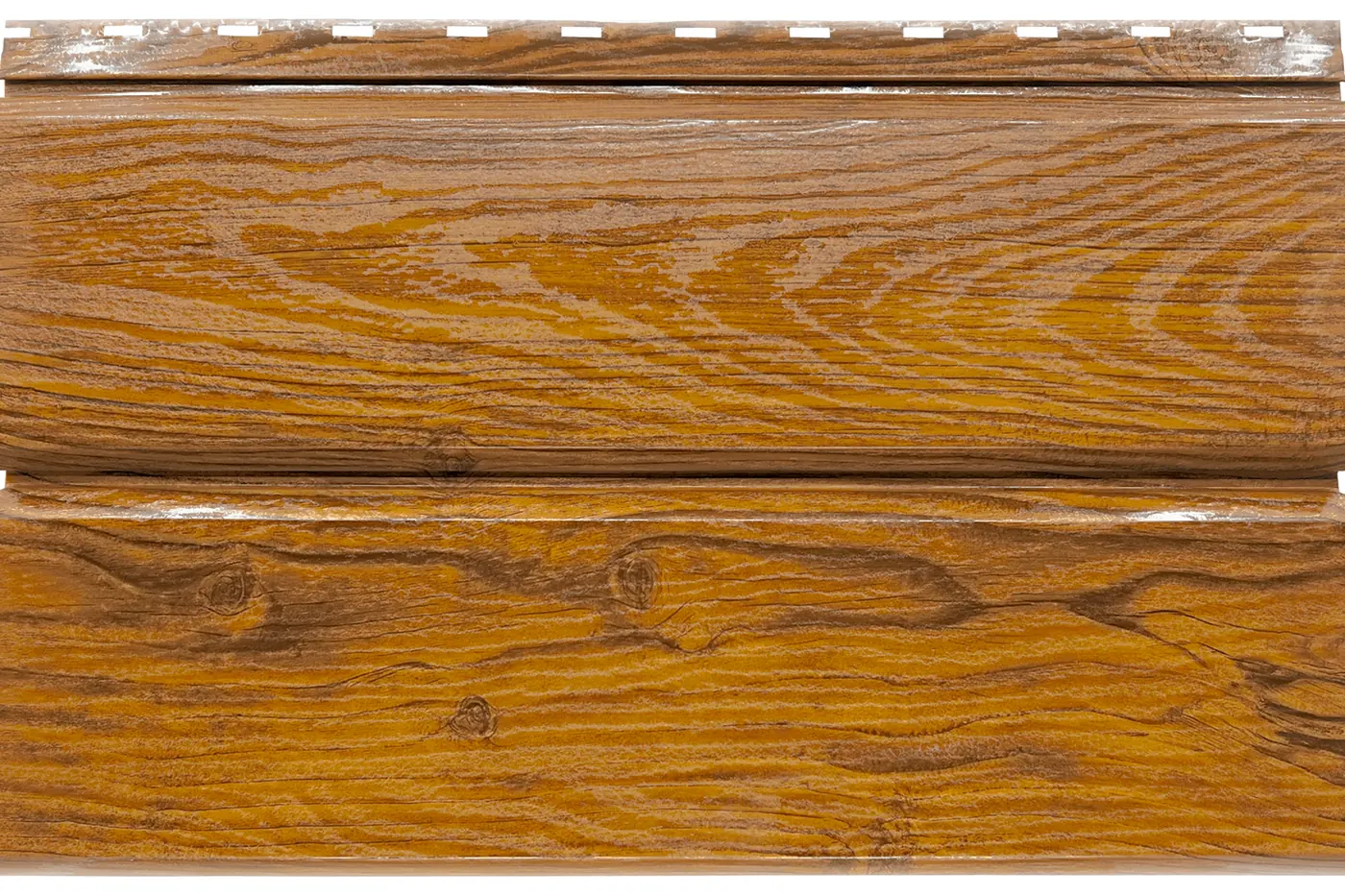

Oak
White oak
Specials
0.45–0.50 mm
Alpine white
gloss
Galvanum
04 Where it is used
Soffits
Woodgrain
Under the eaves - Ventilated facades
05 Questions
About Jupiter
What size is a metal cladding panel?
2.50 m long, 26 cm total width and 24 cm effective width.
How is a soffit ventilated?
Fit 3 solid panels (Jupiter or Venus) to 1 perforated Saturn panel.
Does it warp in the heat?
No. The cladding is rated for temperatures from −50 °C to +120 °C.
Which accessories are there?
A starter profile and a side trim profile.
How do I look after it?
It never needs repainting. Rinse it with water whenever needed.
