Metal cladding · Perforated · for ventilation
Saturn
Perforated cladding that ventilates the soffit.
- Panel length
- 2.50 m; 24 cm cover width
- Warranty
- Up to 30 years, depending on the finish
- Steel thickness
- 0.40–0.50 mm*
- Zinc coating
- 225–275 g/m²
16 colour options · 5 finishes
Prices, configurator and delivery on sipca.ro — the Top Profil Sistem online shop (in Romanian)
* Thickness depends on the finish: 0.40 mm woodgrain; 0.45 mm matt, gloss; 0.50 mm Hi‑Mat, Galvanum.
01 About the model
Saturn cladding
Saturn is the perforated metal cladding: 2.50 m panels with a 24 cm cover width that let air move through the soffit.
It goes in alongside the solid panels: 1 Saturn panel to 3 Jupiter or Venus panels. It does not warp in the heat and is used from −50 °C to +120 °C.
Ventilated façades
Panels for ventilated façades and decorative cladding.
Soffits
3 solid panels to 1 perforated Saturn panel.
No warping in the heat
For use from −50 °C to +120 °C.
Trims
Starter profile and side trim.
02 Profile and sizes
Documents
- Saturn data sheetOn request, by email · we reply within 1–2 working days
- Warranty certificateSupplied with the product · up to 30 years, depending on the finish
| Type | Metal cladding for ventilated façades and soffits |
|---|---|
| Material | Pre-painted, double-galvanised steel sheet — KG Dongbu Steel, South Korea |
| Thickness | 0.40–0.50 mm, depending on the finish |
| Zinc coating | 225–275 g/m² |
| Panel length | 2.50 m |
| Overall / cover width | 26 cm / 24 cm |
| Soffit ventilation | 3 solid panels to 1 Saturn panel |
| Accessories | Starter profile, side trim |
| Service temperatures | −50 °C … +120 °C |
| Technical warranty | Up to 30 years, depending on the finish |
|---|---|
| Aesthetic warranty | Up to 30 years, depending on the finish |
| Expected service life | Over 50 years |
| Delivery | 2.50 m panels; trims ordered separately |
| Production | 5–10 working days |
03 Colours and finishes
Colours and finishes.
16 colour options. Colours on screen are approximate: ask for free samples and see the real finish before you order.
Matt
0.45 mm · one side

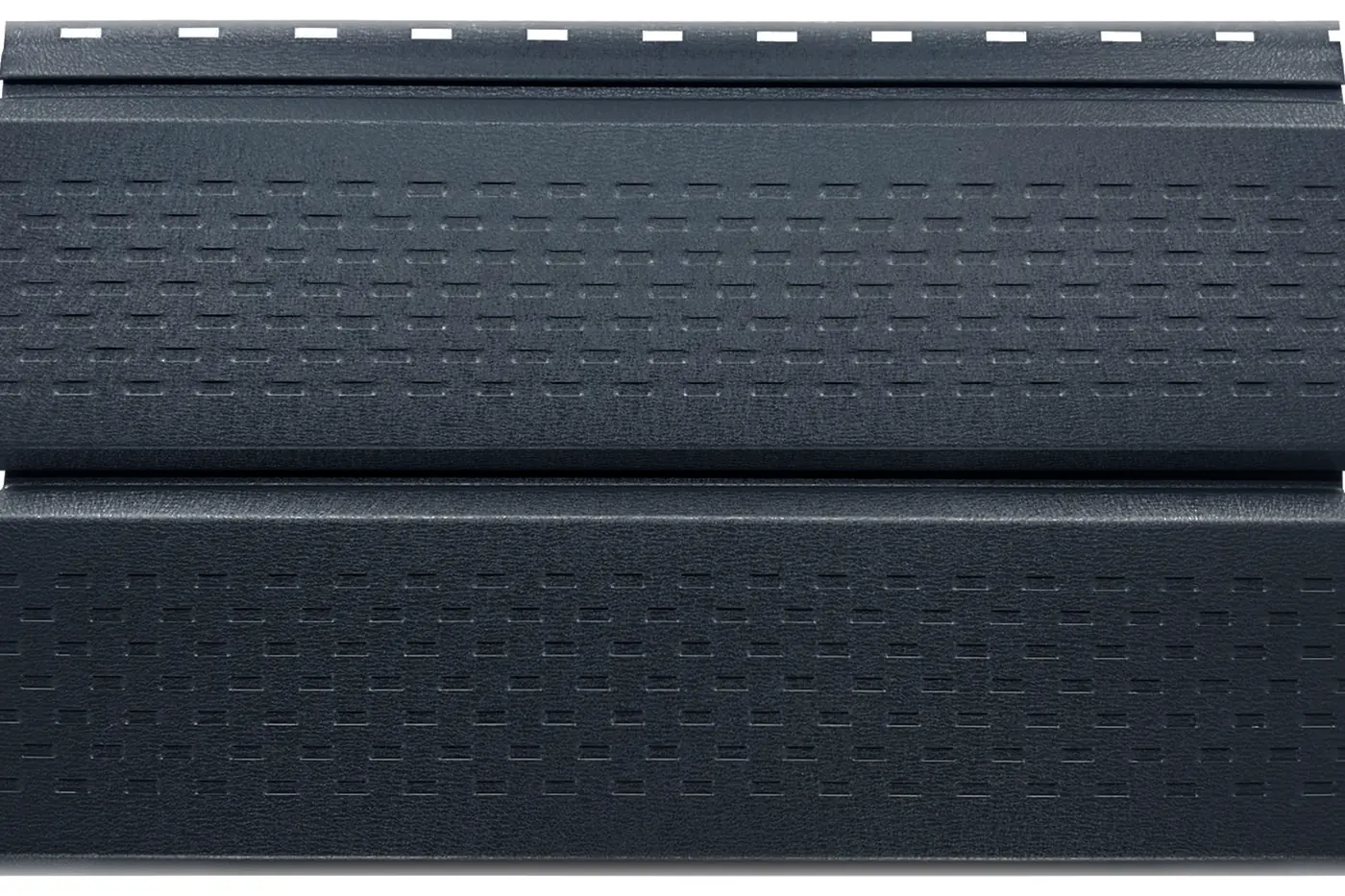

Atlantic grey
RAL 7016

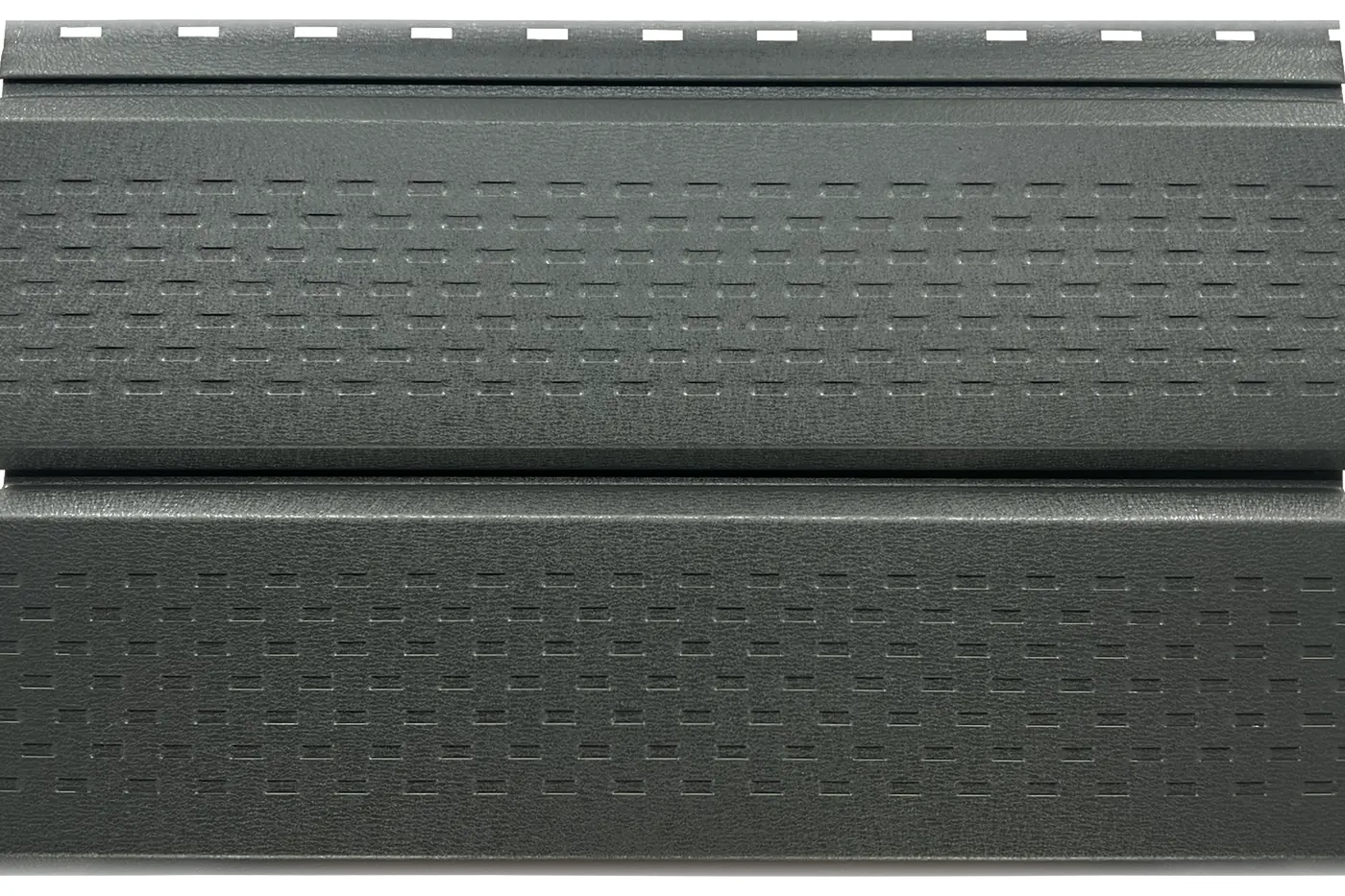

Graphite grey
RAL 7024
Chocolate brown
RAL 8017
Espresso brown
RAL 8019
Hi‑Mat
0.50 mm · textured
Brick red
Pearl graphite
Cedar brown
Night black
Pine green
Cherry red
Woodgrain
0.40 mm · one side
Mahogany
Walnut

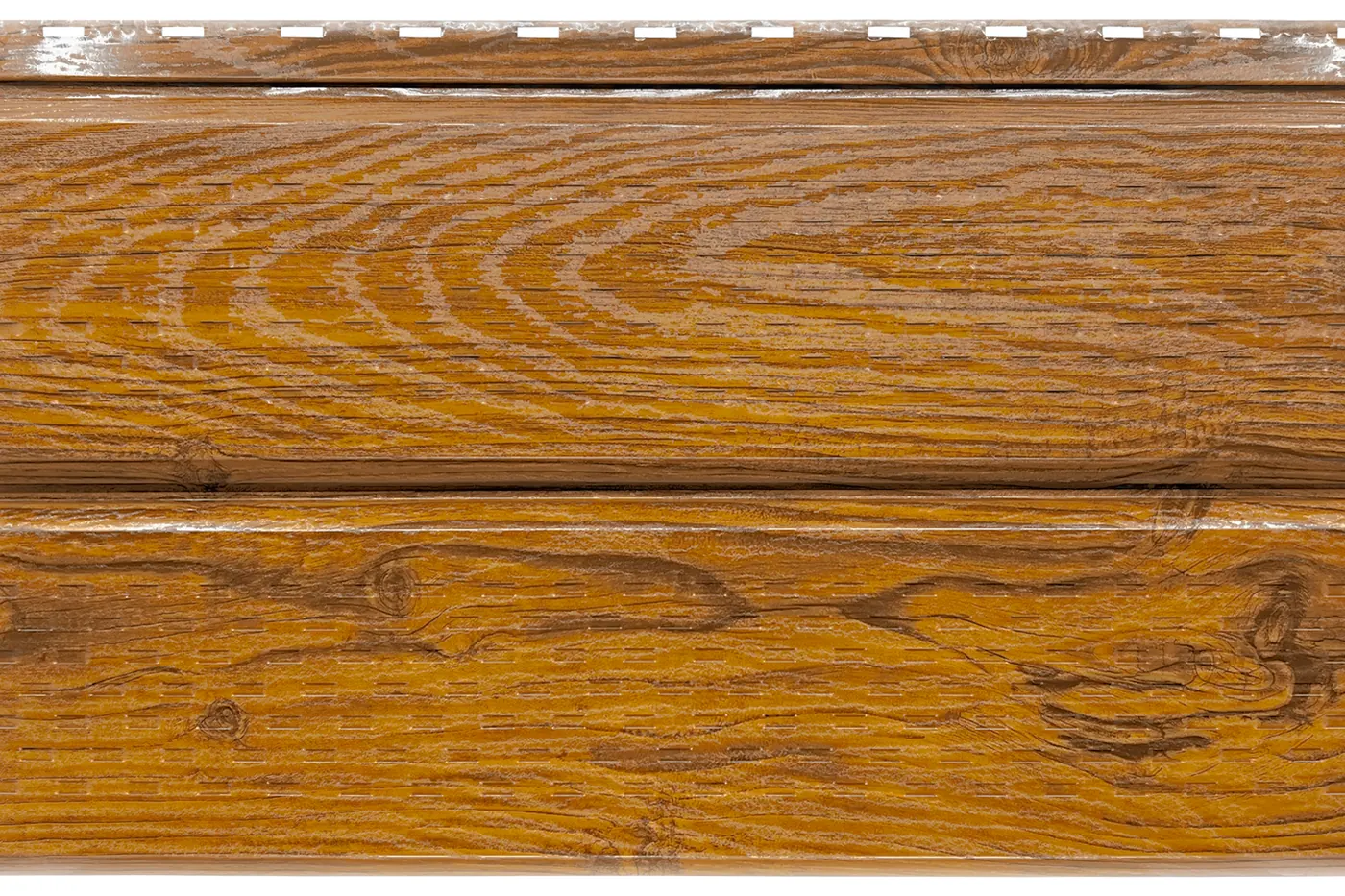

Oak
White oak
Specials
0.45–0.50 mm
Alpine white
gloss
Galvanum
04 Where it is used

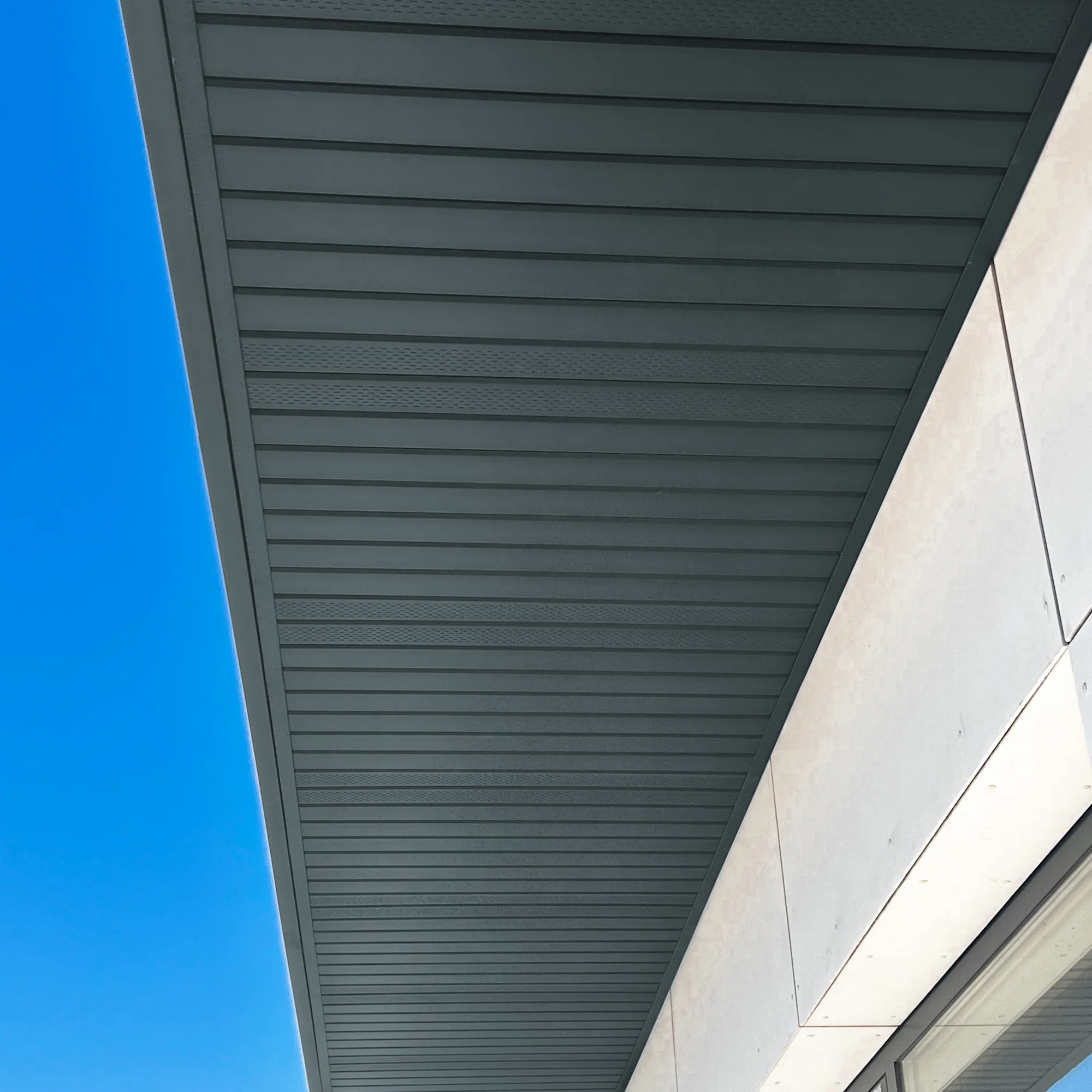

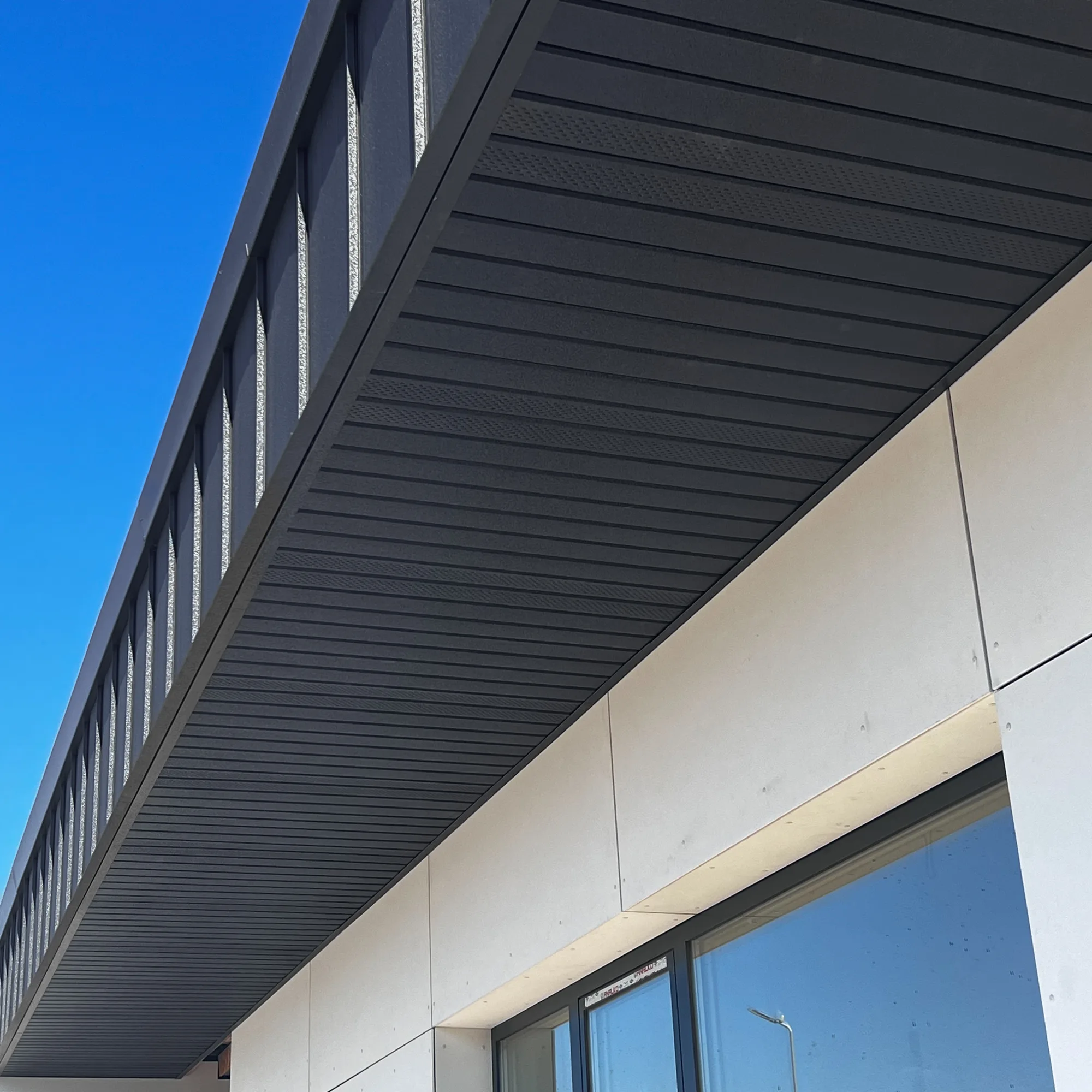

Soffits
Woodgrain
Under the eaves - Ventilated facades
05 Questions
About Saturn
What size is a metal cladding panel?
2.50 m long, 26 cm total width and 24 cm effective width.
How is a soffit ventilated?

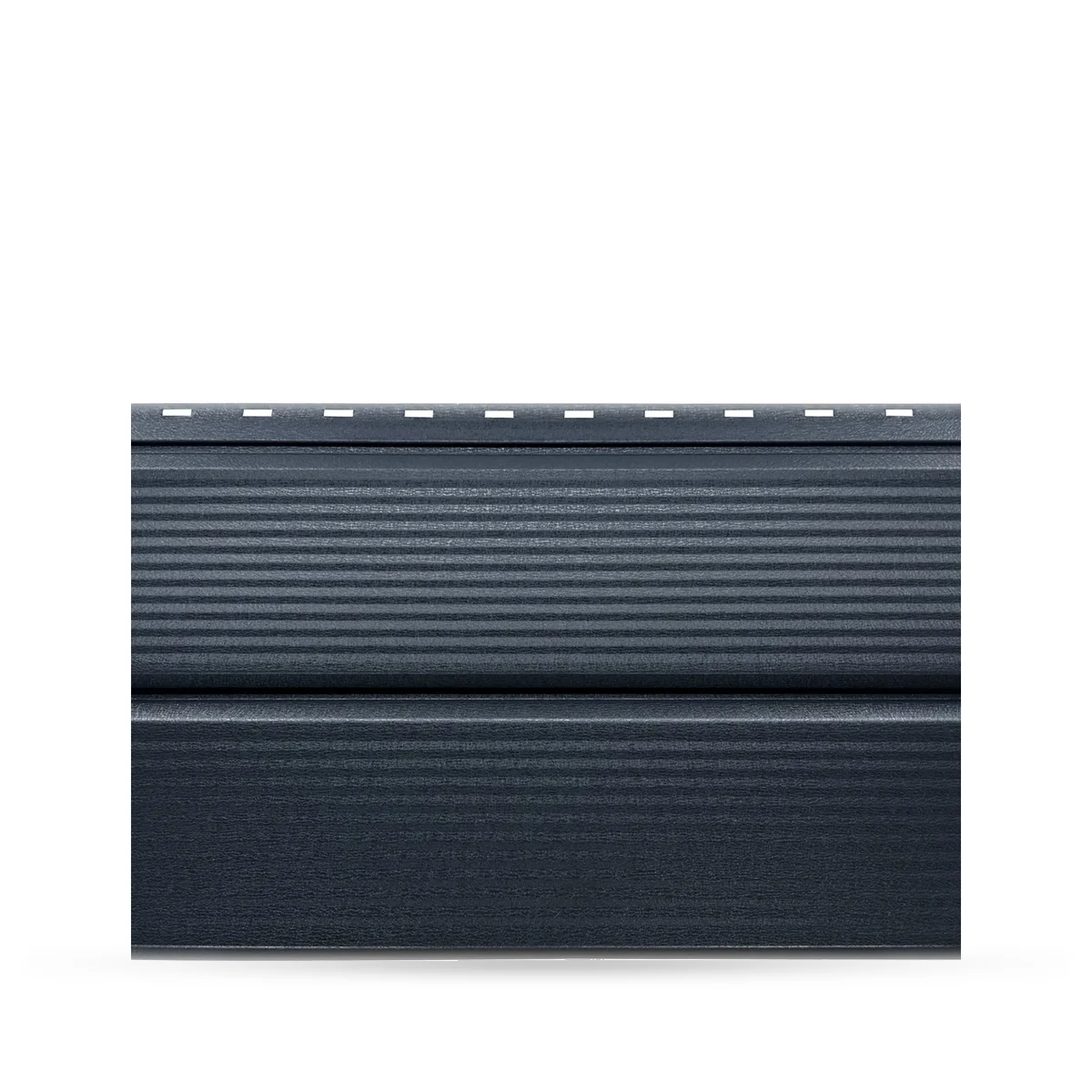

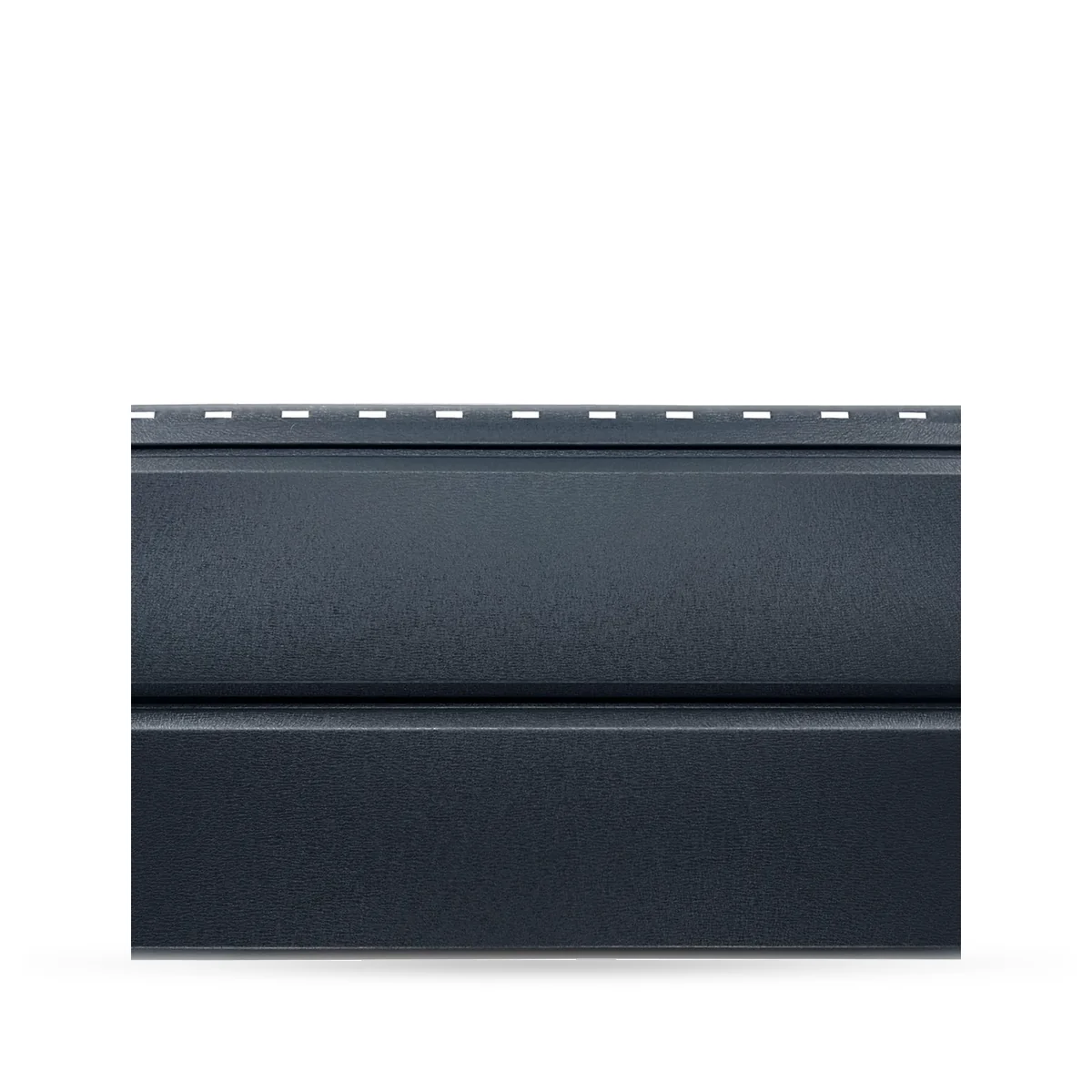

Fit 3 solid panels (Jupiter or Venus) to 1 perforated Saturn panel.
Does it warp in the heat?
No. The cladding is rated for temperatures from −50 °C to +120 °C.
Which accessories are there?
A starter profile and a side trim profile.
How do I look after it?
It never needs repainting. Rinse it with water whenever needed.
For your home
Want this model for your home?
See prices, configure and order online at sipca.ro (in Romanian).
